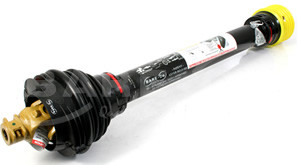

PTO Shaft Assembly - Fits Various: Machines with 1 3/4" x 20 spline center gearboxes

NOTE: 540 Tractor End 1 3/8" 6 Spline, W2580 Series, 80* Wide Angle x 1 3/4" 20 Spline Clamp Type Yoke Implement end

NOTE: To eliminate the possibility of bottoming out, it may be necessary to cut this driveline assembly for proper length

Bush Hog Rotary Cutters 1815, 2100L1, 2215R1, 2215RR1, 2515, 2610, 2610L, 2615, 2615L, 2620, 2715L, 2720, 2810, 2810R2, 2815, 2815R2, 2720, 2820, 3610, 3615, 3710, 3715, 3810, 4810RR1, 4815RR1, 11815, 12215R1, 12215RR1, 12610L, 12615L, 12720, 12810, 12810R2, 12815, 12815R2, 12820, 13710, 13715, 13810

Rhino Rotary Cutters TS12, Flex 10, FLEX15, FM10, FM15, SE10-4, SE15-4, SR10, SR14, SR15, SR20, 2150, 3100, 3150, 4105, 4150, 4155, 5100, 5150, 6140, 6200

Land Pride Cutters

Schulte Rotary Cutters and Mowers

rpls/references: W36105620, 760452, 775301, W36105620, 00791371, 00790233, 00760452, 00791368, 00791581, 00786843

NOTE: *Qualifying driveline orders of $750.00 or more may ship FREE Shipping to a NON-Residential (UPS Commercial) Address ... or usually just a flat rate of $50.00 will be charged  Any questions call me - Rick 330.466.2164

NOTE: Click Here for additional information

80 degree Short Term Operation and Stationary
25 degree Continuous Operation
Exceeding 80 degree angle will result in joint ball / socket FAILURE !
(NOT COVERED BY WARRANTY)
Tractor turning limiter should be fitted to the implement drawbar
